PWC-247-01
$30.83 USD

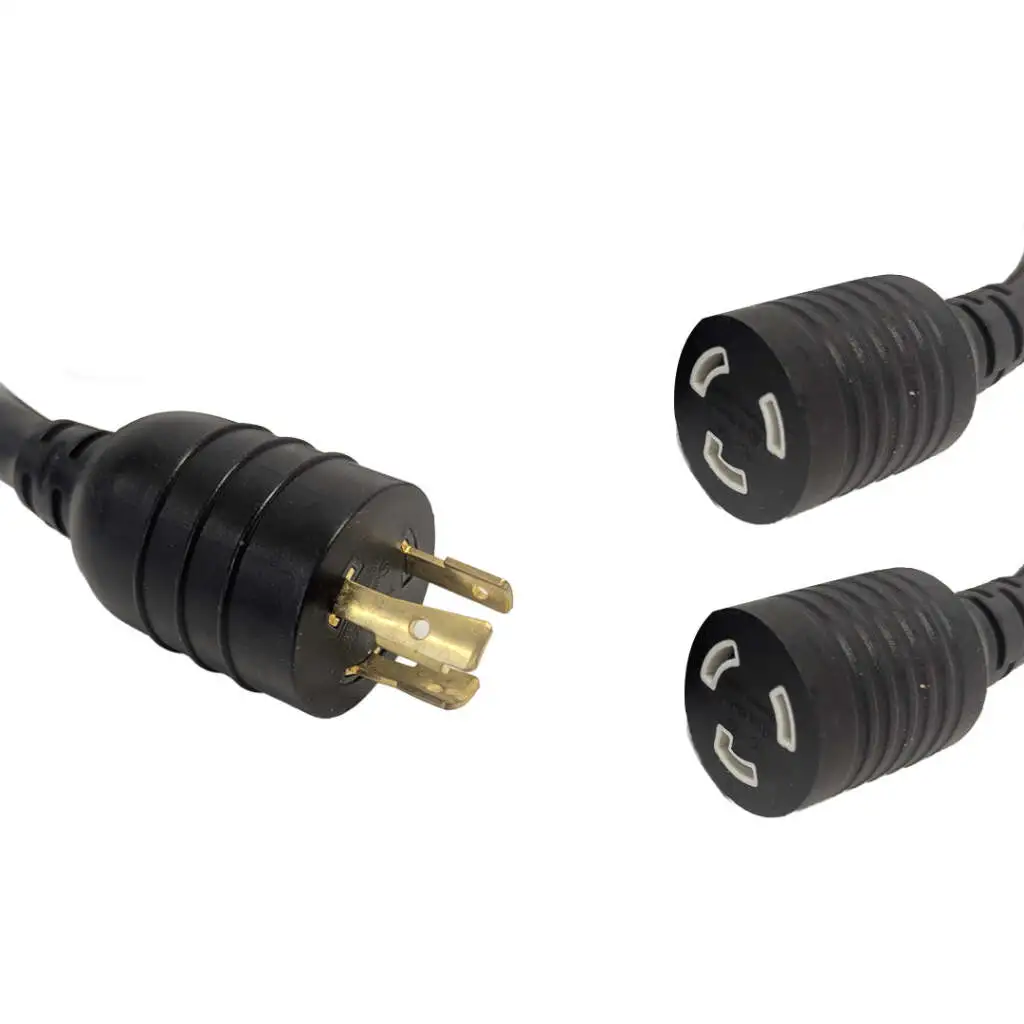

1ft NEMA L6-20P to 2x NEMA L6-20R Power Splitter Cable – 10AWG – SJT
Description
Description
This power cord consists of a L6-20P male on one end and two L6-20R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 10AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC – Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20℃ to 105℃ |
| Connector(s) | |
| Connector A | NEMA L6-20P |
| Connector B | NEMA L6-20R |
| Connector B | NEMA L6-20R |
| Performance | |
| Power Rating | 20 Amp / 250 Volt |
| Approvals | |
| L6-20P | c(UL)us |
| L6-20R | c(UL)us |
| L6-20R | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2000, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.85 lbs [0.3kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
