CN-M12-43A

Earn up to 39 points.$27.66 USD

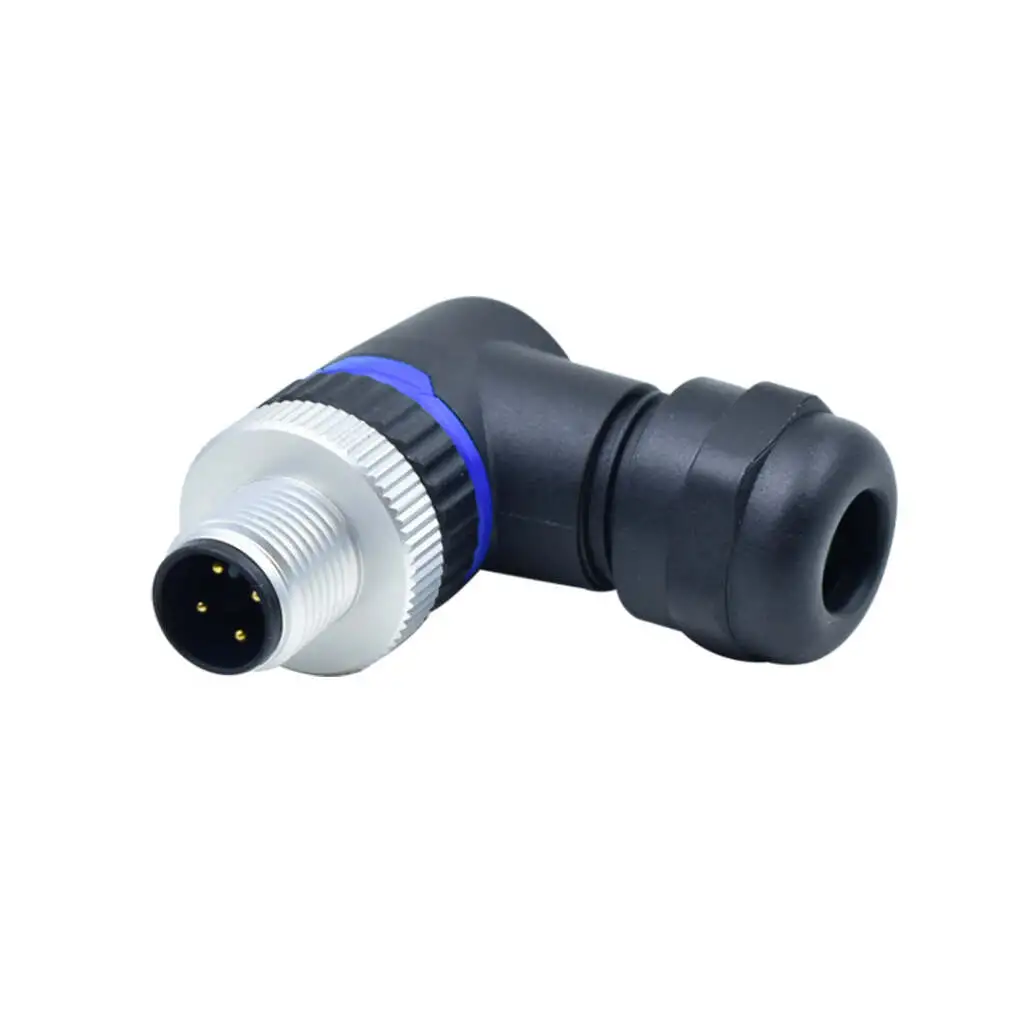

M12 4-pin A-Code Male Right Angle Connector

Are you an organization, school board, reseller, or government agency? Join our partner program to unlock exclusive savings and support.

Join our Partners Program and Save
SKU: CN-M12-43A Category:
Description

Description

Overview

This M12 A-coded 4-pin male right angle connector features a plastic housing and screw clamp for 6–8mm cables. With 250V/4A power rating, it’s ideal for industrial automation, sensors, robotics, and more.

Specifications

Physical Characteristics
Color Black
Gender Male
Housing Plastic
Contacts 4
Termination Screw clamp
Cable Diameter 6 ~ 8mm
Pin Contact Material Copper-zinc alloy (CuZn)
Socket Contact Material Copper-tin alloy (CuSn)
Contact Plating Material Gold
Mechanical Operation >100 mating cycles
Temperature Range -25℃ to 85℃
Rated Voltage 250V
Rated Current(40℃) 4A
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ
Approvals/Environmental
RoHS Compliant
IP67/68 Compliant

Spec Sheets

Download Spec Sheet
