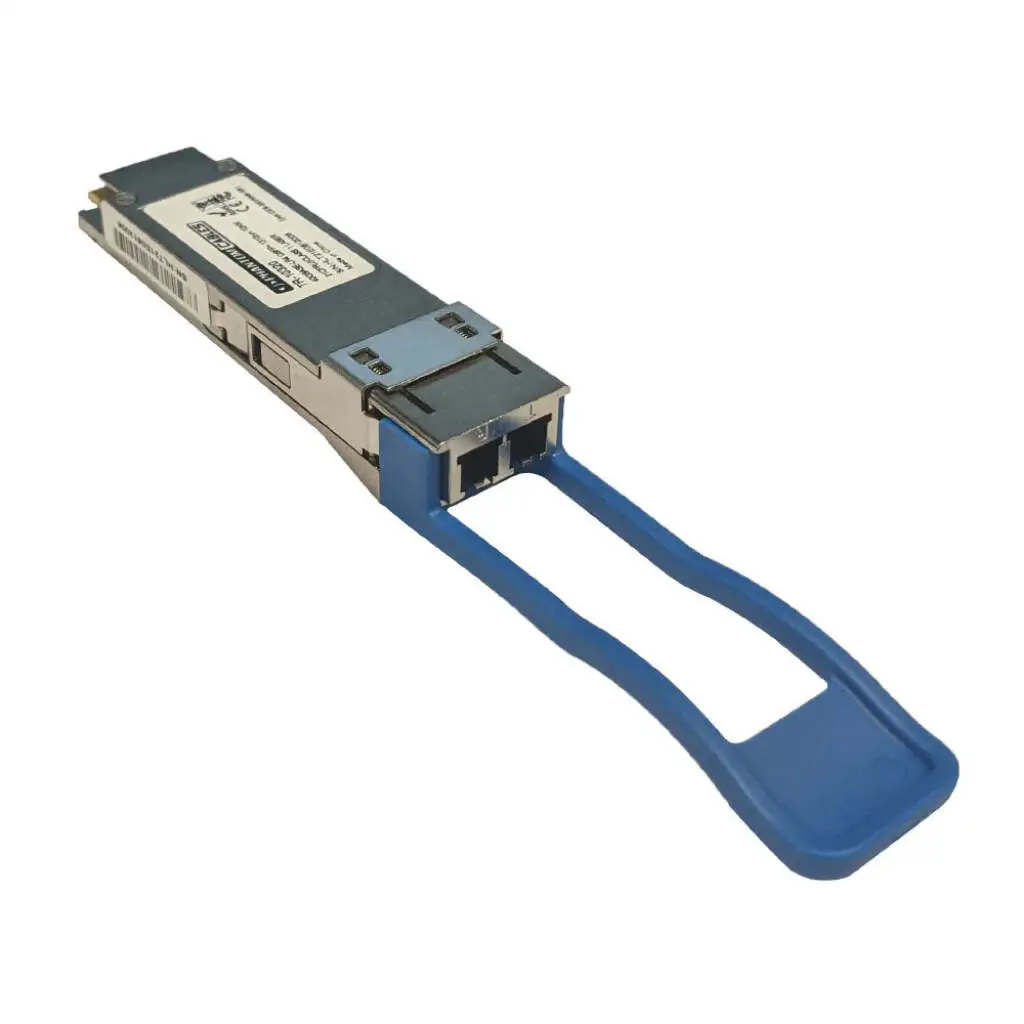

Cisco® CVR-QSFP-SFP10G Compatible 40G QSFP+ to 10G SFP+ Converter Module with DDMI – Cisco
$113.90 USD
Cisco® CVR-QSFP-SFP10G Compatible 40G QSFP+ to 10G SFP+ Converter Module with DDMI – Cisco
Description
Description
This Cisco compatible QSFP+ to SFP+ converter module provides 10G Ethernet connectivity for QSFP+ 40G ports. It allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed Enhanced Small Form-Factor Pluggable (SFP+) modules in empty QSFP ports or when the other end of the network is running at lower speeds. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
|
Physical Characteristics
|
||
|---|---|---|
| Dimensions | 72mm x 18mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -20°C ~ 85°C | |
| Laser Type | Class 1 | |
|
Connectors
|
||
| Connector A | SFP/SFP+ port | |
| Connector B | QSFP plug | |
|
Performance
|
||
| Data Transfer Rate | Max 10Gbps | |
| Power Consumption | ≤1.5W Without Module | |
| DDM/DOM Support | Yes | |
|
Certifications
|
||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
|
Warranty Information
|
||
| Warranty | 5 Year Warranty | |
Spec Sheets
Compatibility List
| 2x100GE-FLEX-40 | A900-IMA2F | A9K-MPA-1X40GE | A9K-MPA-2X40GE | C3850-NM-2-40G | C6800-16P10G(-XL) |
| C6800-32P10G(-XL) | C6800-8P10G(-XL) | C6800-SUP6T | C6800-SUP6T-XL | C6824-X-LE-40G | C6840-X-LE-40G |
| C9300-24P | C9300-24T | C9300-24U | C9300-24UX | C9300-48P | C9300-48T |
| C9300-48U | C9300-48UXM | C9400-SUP-1 | C9400-Sup-1XL | C9500-12Q | C9500-24Q |
| C9500-40X | FPR4K-NM-4X40G | FPR9K-NM-4X40G | N2K- 2332TQ | N2K-2348TQ | N2K-2348UPQ |
| N2K-C2348TQ-E | N3K-C3016Q-40GE | N3K-C3064PQ | N3K-C3064PQ-10GE | N3K-C3064PQ-10GX | N3K-C3064TQ-10GT |
| N3K-C3064TQ-32T | N3K-C3132Q-40GE | N3K-C3132Q-40GX | N3K-C3132Q-V | N3K-C3132Q-XL | N3K-C3172TQ-10GT |
| N3K-C3172TQ-32T | N3K-C3232C | N3K-C3264Q | N55-M4Q | N5600-M12Q | N5696-M12Q |
| N56-M24UP2Q | N5K-C55XX | N5K-C56128P | N5K-C5624Q | N5K-C5648Q | N5K-C5672UP |
| N5K-C5672UP-16G | N5K-C5696Q | N6004-96Q | N6004-B-24Q | N6K-C6001-64P | N6K-C6001-64T |
| N6K-C6004-M12Q | N77-F324FQ-25 | N77-M312CQ-26L | N77-M324FQ-25L | N7K-F312FQ-25 | N7K-M206FQ-23L |
| N9K-9736C-EX | N9K-9736C-FX | N9K-C92160YC-X | N9K-C92300YC | N9K-C92304QC | N9K-C9236C |
| N9K-C9272Q | N9K-C93108TC-EX | N9K-C93108TC-FX | N9K-C93120TX | N9K-C93180LC-EX | N9K-C93180YC-EX |
| N9K-C93180YC-FX | N9K-C93240YC-FX2 | N9K-C9332PQ | N9K-C9336C-FX2 | N9K-C9336PQ | N9K-C9348GC-FXP |
| N9K-C9364C | N9K-C9372PX | N9K-C9372PX-E | N9K-C9372TX | N9K-C9372TX-E | N9K-M12PQ |
| N9K-M6PQ | N9K-M6PQ-E | N9K-X9432C-S | N9K-X9432PQ | N9K-X9464PX | N9K-X9464TX |
| N9K-X9464TX2 | N9K-X9536PQ | N9K-X9564PX | N9K-X9564TX | N9K-X9636C-R | N9K-X9636C-RX |
| N9K-X9636PQ | N9K-X97160YC-EX | N9K-X9732C-EX | N9K-X9736C-FX | N9K-X9736PQ | NC55-18H18F |
| NC55-24H12F-SE | NC55-24X100G-SE | NC55-36X100G | NC55-36X100G-A-SE | NC55-36X100G-S | NCS 5011 |
| NCS1002-K9 | NCS-5501 | NCS-5501-SE | NCS-5502 | NCS-5502-SE | NCS-55A1-24H |
| NCS-55A1-36H-S | NCS-F-SCSW | UCSC-MLOM-C40Q-03 | UCSC-PCIE-C40Q-03 | UCS-FI-6332-16UP-U | UCS-FI-6332-U |
| WS-C3560X-24P | WS-C3560X-24T | WS-C3560X-48P | WS-C3560X-48PF | WS-C3560X-48T | WS-C3850-48XS |
| WS-C3850-48XS-E | WS-C3850-48XS-F-E | WS-C3850-48XS-F-S | WS-C3850-48XS-S | WS-X45-SUP9-E | |
| Avaya | Force10 | D-Link | EMC2 | F5 Networks | |
| Fortinet | Hirschmann | Linksys | Moxa | MRV | |
| Netgear | Nokia Siemens Networks | Palo Alto Network | Qlogic | RAD | Ruijie Networks |
| Supermicro | Synology | Telco Systems | TP-Link | Trendnet | WatchGuard |
| ZTE |
Additional information
Additional information
| Weight |
|
|---|---|
| Dimensions |
|
| Condition |
New , New Open Box , Refurbished , Used |
