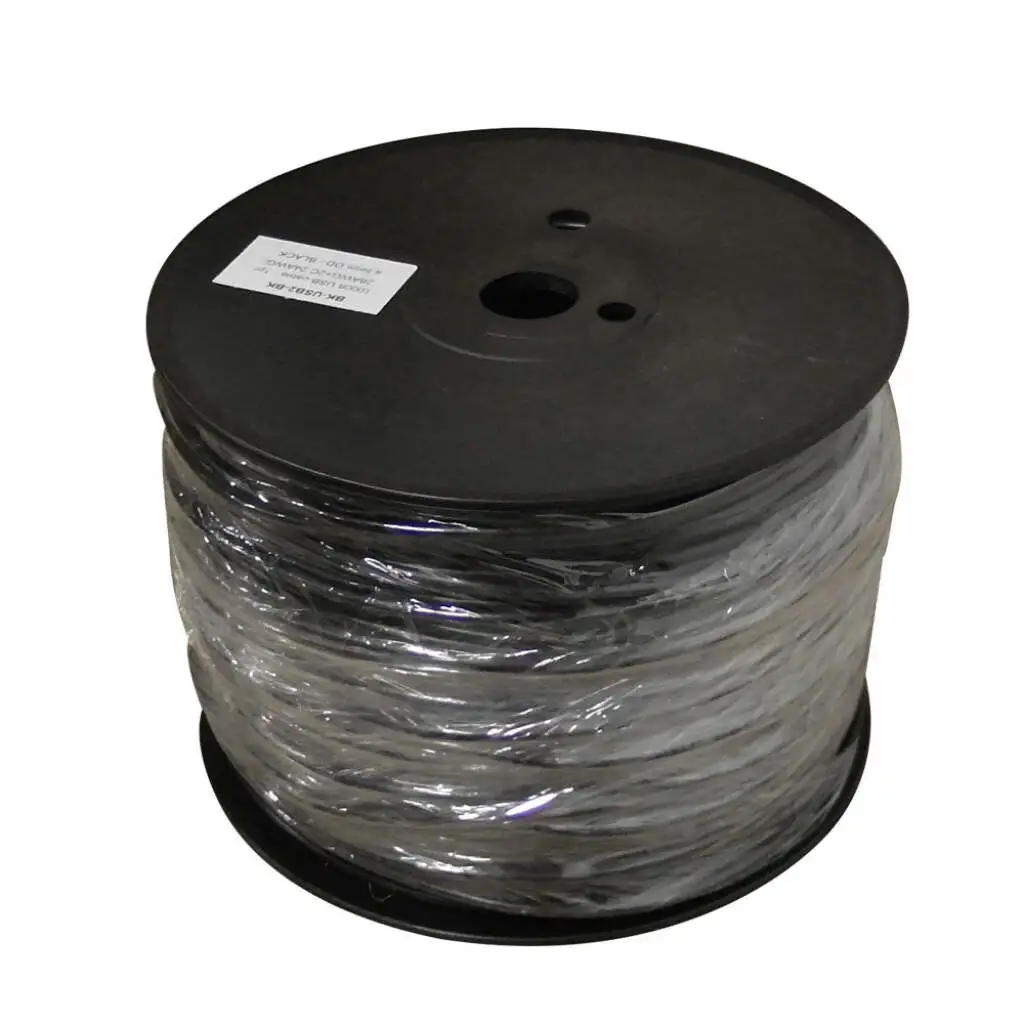

1000ft USB Cable – 1Pr 28AWG + 2C 24AWG, 4.5MM OD – Black
$154.14 USD
1000ft USB Cable – 1Pr 28AWG + 2C 24AWG, 4.5MM OD – Black
Description
Description

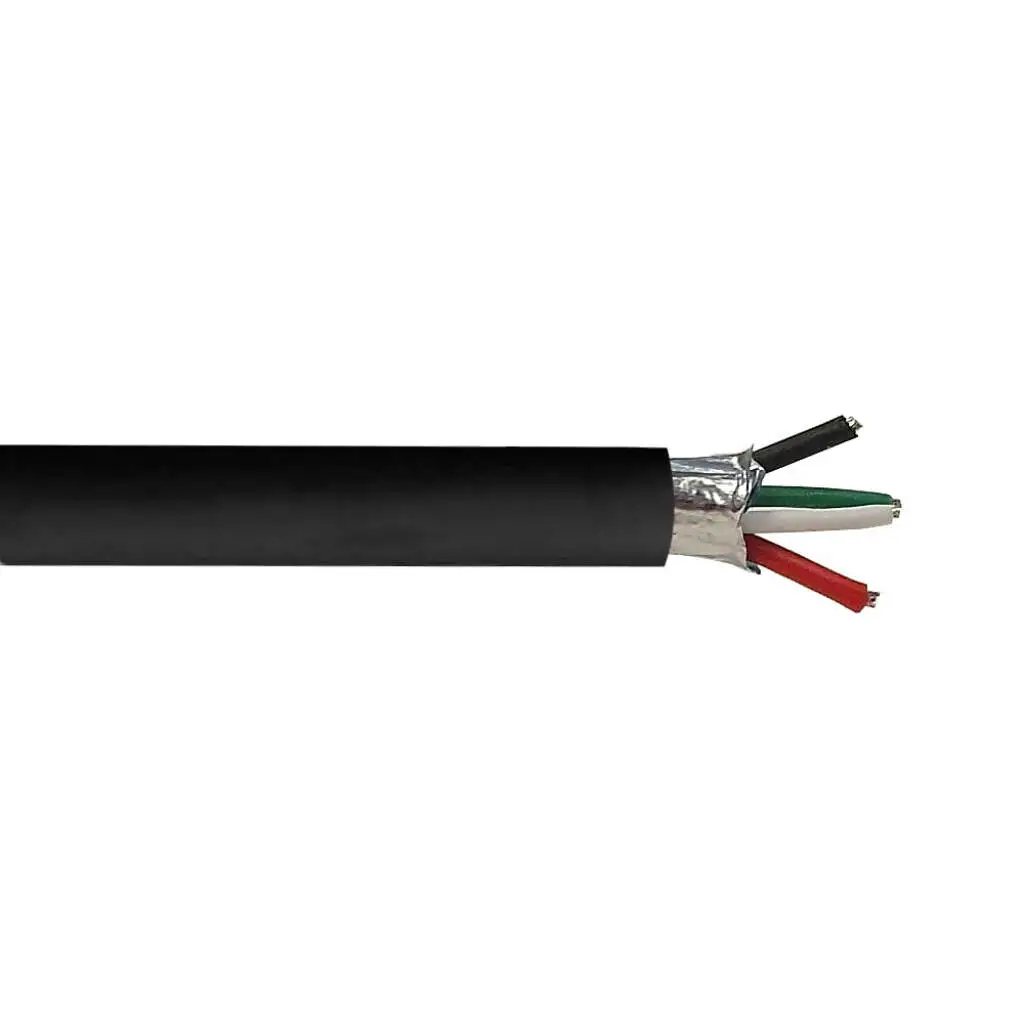

This USB 2.0 bulk cable consists of 1 pair of 28 gauge data wires and 2 conductors of 24 gauge power wires, is black in color and 1000 feet in length. It is typically used to manufacture USB cable assemblies.Â
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 ft (305m) |
| Color | Black/White |
| Cable Diameter | 4.5mm +/- 0.15 |
| Wire Gauge | 1pr 28AWG + 2C 24AWG |
| Temperature Rating | 80℃ |
| Jacket Material | PVC |
| Jacket Average Thickness | 0.6mm |
| Cable Shielding | Braid + Foil Shield |
| Insulation Material |
HDPE |
| Insulation Avg Thickness | Pair: 0.21mm Conductors: 0.18mm |
| Insulation Diameter | Pair: 0.84±0.05mm Conductors: 1.00±0.05mm |
| Conductor & Drain Construction | 7/0.127±0.005mm |
| Conductor & Drain Material | Tinned Copper |
| Conductor Cabling OD | Pair: 0.38mm Conductors: 0.6mm |
| Assemble Cabling OD (mm) | 2.50(REF) |
| Braid Construction | Aluminum Magnesium Alloy Wire |
| Braid Coverage | 65% |
| Aluminum | Constructive Side: Outside/Overlap 25 |
| Before Aging | Tensile Strength: >=1.05kgf/mm² Elongation: >100% |
| After Aging | Tensile Strength: >70% Elongation: >=65% |
| Flame Test | VW-1 |
| Electrical Characteristics | |
| Voltage Rating | 30V |
| Insulation Resistance | 100M (ohms*km min at 20℃) |
| Conductor Resistance | 239 (ohms/km max at 20℃#28) 94.2 (ohms/km max at 20℃#24) |
| Characteristic Impedance | 90±13.5ohm(TDR) |
| Intra-Pair Skew | 100ps/cable |
| Performance | |
| USB Standard | USB 2.0 |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 20.9 lbs [9.5 kg] |
