1000ft 6C 22AWG Stranded Control Cable – CMR Shielded – White
$215.72 USD
1000ft 6C 22AWG Stranded Control Cable – CMR Shielded – White
Description
Description

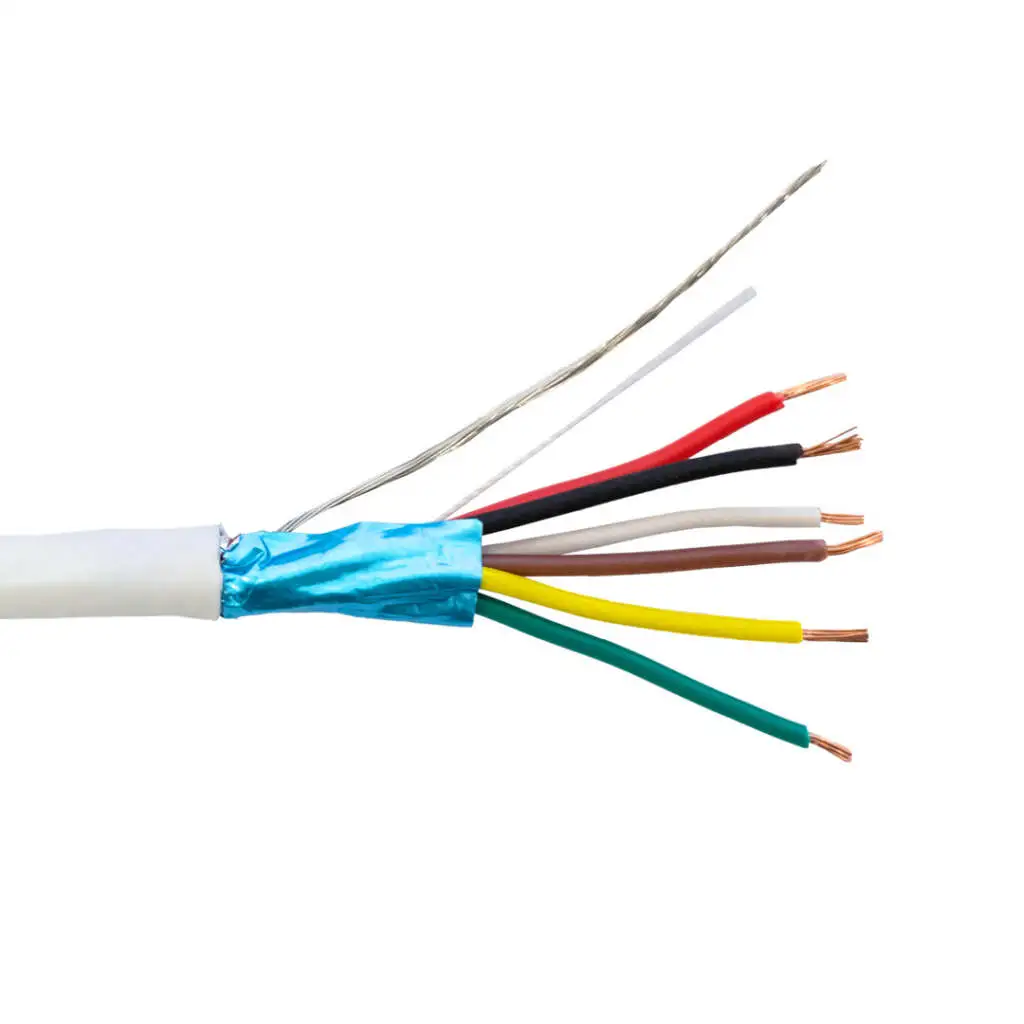

This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 6 Conductors (Black/Red/Green/White/Brown/Yellow) Oxygen Free Copper (OFC) |
| Jacket Material | PVC |
| Wire Gauge | 22 AWG |
| Material (conductors) | Oxygen Free Copper |
| Stranding | 7*0.25mm |
| Insulation Material | PVC |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.3mm |
| Shielding | Overall Foil Shielded 110% |
| Drain Wire | 7*0.2mm Tinned Copper Drain Wire |
| Ripcord | Nylon |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
| Flammability Test | CMR (Riser Rated) |
| Mechanical Characteristics | |
| Before Tensile Strength | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100×168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Certifications | |
| RoHS | Yes |
| Reach | Yes |
| c(ETL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 36 lbs |
Spec Sheets
Additional information
Additional information
| Weight |
|
|---|---|
| Dimensions |
|
| Condition |
New , New Open Box , Refurbished , Used |
